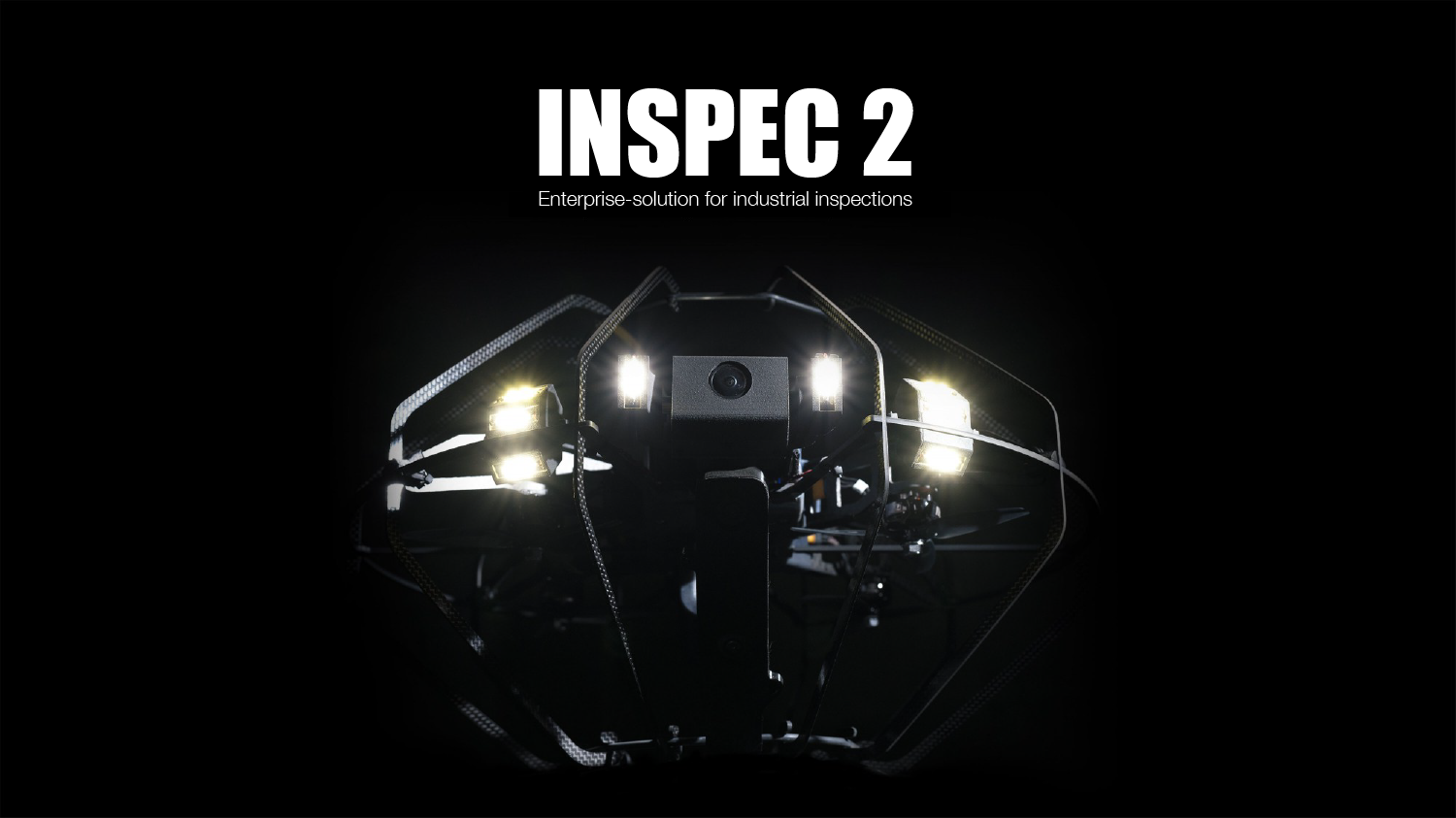

INSPEC 2 is the most advanced drone for reliable inspections in hard-to-reach environments.
INSPEC 2, let's you fly where other drones fail. Thanks to intelligent sensors, the drone can position itself without GPS and navigate through complex indoor environments. Focus on your mission and benefit from cost-effective and fast inspections.
A wide stereo optics, combined with AI image algorithms, ensures centimeter-accurate positioning. The integrated height lidar enables automatic distance control from the ceiling
The integrated LiDAR sensors ensure automatic safe distance from the ceiling. Thanks to innovative assistance modes, INSPEC 2 maintains predefined distances from obstacles.
Sufficient lighting is necessary to perform high-quality and clear inspections. The different lighting modes make any damage clearly visible.
The 180° field of view of INSPEC 2 delivers precise data recording. The 4K camera sensor identifies damages from ceiling to floor in crisp detail.
The cage of INSPEC 2 reliably protects the drone from collisions. Even the tightest indoor spaces pose no challenge.
.jpg){kind=icon}
With the intelligent control system, you can fly safely and reliably in the most challenging environments. Excellent range, high-resolution data, a variety of assistance functions, and professional software enable fast and precise operations.
With the INSPEC 2 Range Extender, you can extend the antennas of the remote control into the area to be flown and thereby expand the usable range of the drone.
| Cable length: | up to 20 m |
| Gain: | Active |
| Frequency: | 2,4 GHz |
| Signal: | Omnidirectional |
| Plug & Play: | Yes |
| Protective Cage: | Yes |
| Mounting: | Screw closure |
Inspecting complicated constructing interiors oftentimes results in being hazardous. However, INSPEC 2 avoids unfavorable work-related incidents and removes any future risks altogether.
Eliminate any need for scaffolding, industrial climbers and other similar equipment. Since the INSPEC 2 is around, the time taken for any project is highly reduced.
Durch INSPEC 2 können Inspektionen, selbst in schwer zugänglichen oder gefährlichen Umgebungen schnell und einfach durchgeführt werden.
Inspections using the INSPEC 2 offer you detailed three-dimensional models that are used for measuring and recording data.
| Specifications | |
|---|---|
Dimensions: |
399mm x 399mm x 240mm |
Physical collision protection: |
360° modular cage |
Flight time: |
14+ minutes |
Assistance functions |
GPS-free stabilization, distance control, light control |
Sensors: |
170° stereosensor, IR LiDAR, 3x IMUs, 2x barometers |
Camera: |
4K Sony IMX 117 12MP sensor |
Live Broadcast: |
1080p video stream |
Gimbal radius: |
180° stabilized swiveling |
Illumination intensity: |
10.000 lumens adjustable lighting |
Takeoff weight: |
1.300 g |
Material: |
Carbon fiber , (thermal) plastic |
Battery: |
6.000mAh Li Ion |
Horizontal speed: |
up to 1.8 m/s (Manual up to 5m/s) |
Vertical speed: |
up to 1.5 m/s (Manual up to 5m/s) |
With a weight of only 8 kg and a minimal form factor, you can transport your equipment safely and quickly to the deployment site. The INSPEC 2 case impresses with shock-resistant material, water and dust resistance, rolling wheels, and an extendable handle.
The INSPEC 2 is designed and manufactured in our in-house production facility located in Rostock. Here, each drone undergoes an intensive testing process before delivery. We are your reliable on-site contact for maintenance and service."
